TMRS2 Series Outdoor Thermal Imaging Monocular 256X192 Night Vision Device with WIFI for Hunting

Model Number : TMRS2

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-30 days

Packaging Details : Optional

Detector Type : Uncooled Focal Plane Vanadium Oxide

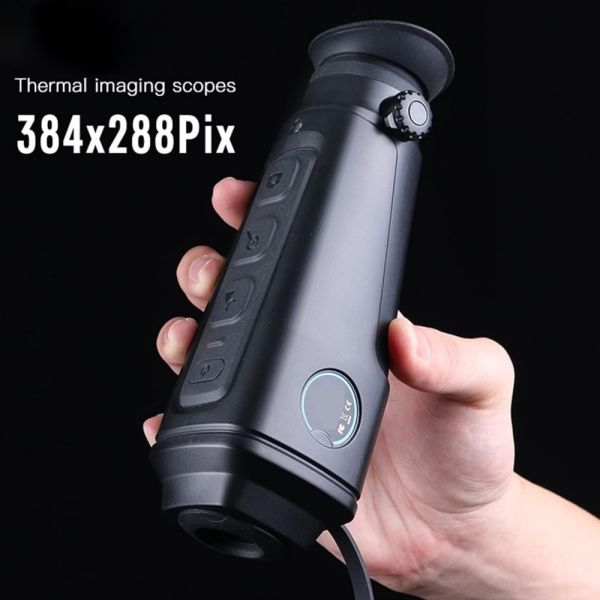

Pixels : 384x288/256X192

Focal Length : 15mm 19mm

Field of View (±5%) : 12.1°*9.1° 17.6°*13.2° 13.9°*10.4°

Frame Rate : 50HZ

Focus : Manual

Contact Now

TMRS2 Series Outdoor Thermal Imaging Monocular 256X192 Night Vision Device with WIFI for Hunting

Product Description

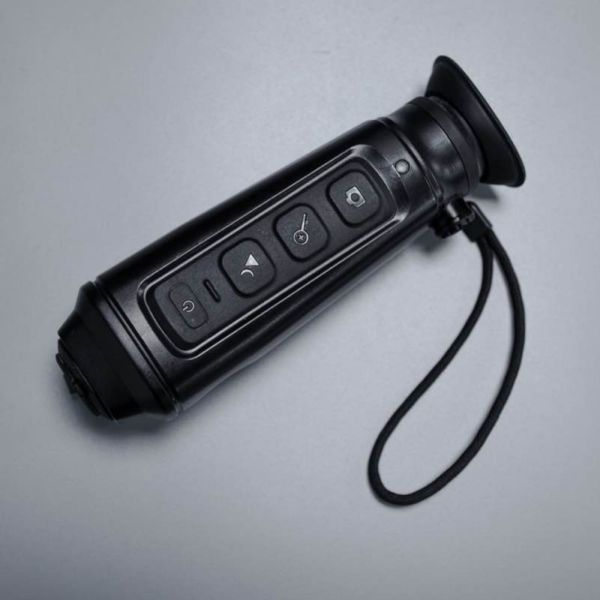

◆All-metal aluminum body for durability
◆Core Detector Upgrade:Highly-sensitive Sensor 256×192 Pixels, 35/1.0 large aperture lens,Upgraded to 14μm, Uncooled Focal Plane Vanadium Oxide Infrared Detector Demonstrates Professional Strength Inside Out
◆0.32" OLED: Large-size eyepiece display for a wide field of view that is pleasing to the eye and clear
◆1-4X Continuous Zoom: Smooth, silky image quality with no loss

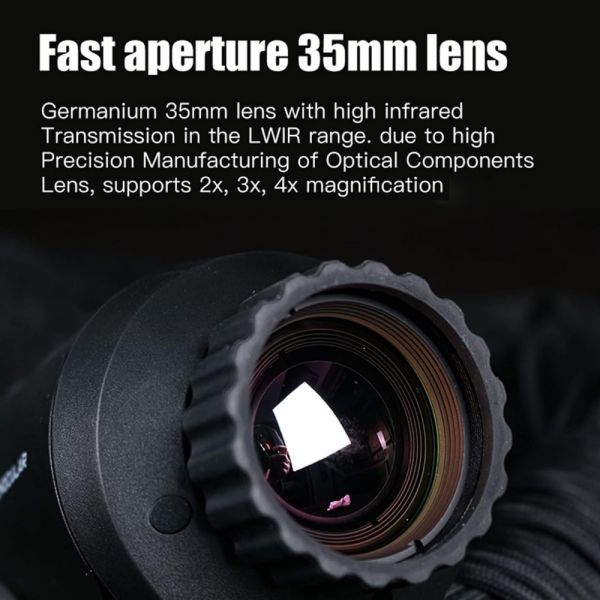

◆35mm Len:Ready to use with a simple lift, eliminating the hassle of focusing and ensuring no details are missed during observation.
◆50Hz High Frame Rate:Delivers a comfortable and high-quality viewing experience for moving targets, with sensitive and smooth dynamic image capture free of lag.
◆Laser Pointer + Crosshair Cursor + Hotspot Tracking: Quickly and accurately assist in locating target objects
◆Built-in Rangefinder: A standard 1.8m high object can be fully detected up to 1000m+, enabling exploration of longer distances
◆Picture-in-Picture, Instant Clarity: The central area is magnified 2x, allowing you to see target details without losing the field of view
◆Type-C: Supports external display connection, power bank charging, and tripod mounting.
◆Built-in Storage: 32GB large-capacity built-in storage for capturing more wonderful moments.
◆IP66 Rating: Weather-resistant, one-handed operation supported, 1-meter drop protection, and usable within a temperature range of -20°C to +50°C.

TMRS2 Series Outdoor Thermal Imaging Monocular 256X192 Night Vision Device with WIFI for Hunting

Specification

Project Name		S242 Pro	S243 Pro	S243 Max
Detector Performance	Detector Type	Uncooled Focal Plane Vanadium Oxide
	Pixel	256×192	384×288	384×288
	Noise Equivalent Temperature Difference (NETD)	≤35mk@25℃
Image Functions	Field of View (FOV)	12.1°*9.1°(±5%)	17.6°*13.2°(±5%)	13.9°*10.4°(±5%)
	Focal Length	15mm	15mm	19mm
	Frame Rate	50HZ
	Focus	Fixed Athermalization, Focus-Free			Manual Focus
	Electronic Zoom	1.0~4.0X
	Wavelength Range	8-14μm
	Image Transmission	WiFi Real-Time Image Transmission
	Crosshair Cursor	Yes
	Built-in Photo and Video Recording	Yes
	Internal Storage	32G
	Hotspot Tracking	Yes
	Laser Pointer	Yes
Image Display	Display	Color OLED 800*600 (Eyepiece Diopter Adjustable)
	Image Polarity	Black Hot, White Hot, Red Hot, False Color Modes
	Diopter Adjustment	Adjustment via Knob
Power Supply System	Battery Type	Lithium Battery
	Battery Operating Time	≥15h	≥10h	≥10h
	Charging Type	Supports USB Charging and Can Be Powered by an External Power Bank
	External Power Supply	DC5V/2A(type-c)
Environmental Parameters	Operating Temperature	-20℃- +50℃
	Storage Temperature	-40℃- +60℃
	Protection Class (IP Rating)	IP66
	Drop Resistance	1 M
Physical Characteristics	Weight	≤330g	≤330g	≤350g
	Dimensions	≤1856060mm	≤1856060mm	≤1996060mm
Interface	Power Interface	Type-C External Charging
	Video Output	PAL
Detection Distance	Human (1.8*0.5m)	1000m	1000m	1300m
	Vehicle (2.3*2.3m)	1400m	1400m	1800m
Recognition Distance	Human (1.8*0.5m)	345m	345m	435m
	Vehicle (2.3*2.3m)	480m	480m	600m
