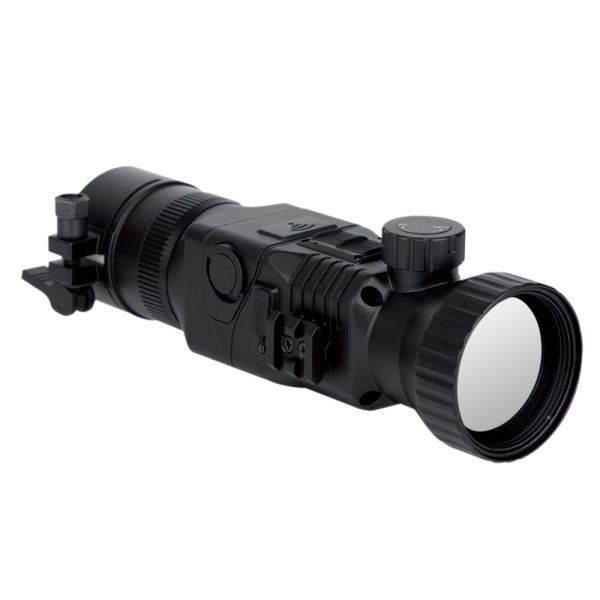

TMRS6 Series Thermal Imaging Night Vision Scope 384x288 Resolution for Hunting

Model Number : TMRS6

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-30 days

Packaging Details : Optional

Detector Type : Uncooled Focal Plane Vanadium Oxide

Pixels : 384×288 640×512

Focal Length : 35mm 50mm

Field of View (±5%) : 7.5°*5.7° 8.8°*7.0°

Frame Rate : 50HZ

Focus : Manual

Contact Now

TMRS635-384 Thermal Imaging Night Vision Scope 384x288 Resolution for Hunting

Product Description

◆35mm lens Options ,12μm pixel pitch,384/640 pixels Array

◆Built-in Photos/videos recording functions and also support WIFI transmission

◆0.49 inch OLED 1440*1080 resolution display

◆Alloy housing ,protection IP67,meet requirement in harsh environment

◆Shock Resistance Up to 800g/ms ,and Impact resistance up to 6000J

◆Clip-On mode or standalone mode

◆Core Detector Upgrade: 384×288 Pixels, Upgraded to 12μm, Uncooled Focal Plane Vanadium Oxide Infrared Detector – Professional Strength Inside Out

◆50Hz High Frame Rate:Delivers a comfortable and high-quality viewing experience for moving targets, with sensitive and smooth dynamic image capture free of lag.

◆5 Color Modes: Black Hot/White Hot/Green Hot/Iron Red/Red Hot – Adaptable to Different Observation Scenarios in Complex Environments and Changing Weather

◆10 optional reticle types + hotspot tracking function: suitable for observation in different environments

◆1.0 ~ 8.0X Electronic Zoom: Magnifies image details for clearer local information

◆Picture-in-Picture and Hotspot Tracking: The central area is magnified 2x, allowing you to view target details without losing the field of view

◆Bad Pixel Repair Function:It detects "bad pixels" on the sensor or screen through algorithms, and compensates for or masks the bad pixels using information from surrounding normal pixels to ensure image integrity.

◆Built-in Storage: 32GB large-capacity built-in storage for capturing more wonderful moments.

◆Long Battery Life: Dual Power Management, with Built-in Rechargeable Lithium Battery + External Battery (CR123×1), Enabling Continuous Operation for ≥4 Hours

◆Built-in Rangefinder: Detection range up to 3000m+, Identification distance up to 1600m, enabling exploration of longer distances

TMRS6 Series Thermal Imaging Night Vision Scope 384x288 Resolution for Hunting

Specification

Model		RS635-384	RS650-640
Detector Performance	Detector Type	Uncooled focal plane vanadium oxide
	Pixels	384×288	640×512
	Pixel Pitch	12μm
	NETD	≤20mk(25 °C, F#=1.0)
Image Performance	Focal Length	35mm	50mm
	Field of View (±5%)	7.5°*5.7°	8.8°*7.0°
	Minimum Focusing Distance	2m	5m
	Lens Aperture	F1.0	F1.0
	Frame Rate	50HZ
	Focus Mode	Manual
Image Display	Display	0.49-inch color OLED with 1440*1080 resolution
	Exit pupil diameter	Forward-facing: 10mm	Forward-facing: 10mm
		Standard sight: 6mm	Standard sight: 6mm
	Exit pupil distance	Forward-facing: 46mm	Forward-facing: 40mm
		Standard sight: 50mm	Standard sight: 50mm
	Eyepiece Magnification	3x magnification	3x magnification
	Base Magnification	Forward-facing mode: X1	Forward-facing mode: X1
	Diopter	Adjustable, -5D~+5D
Thermal Imaging Operation	Brightness/Contrast	Adjustable
	Image Correction Mode	Auto/Manual
	Polarity Conversion	Black Heat/White Heat/Green Heat/Iron Red/Red Heat
	Electronic Zoom	X1.0~8.0
	Retrieval	Yes, ten modes
	Hotspot Tracking	Yes
	Picture-in-Picture	Yes
	Dead Pixel Repair	Yes
	Wi-Fi	Yes, AP and WLAN modes
Image Storage	Built-in	32G
	Audio recording	Yes
	Reverse-activated recording	Yes
	Storage method	Video recording, photo taking
Power Supply	Battery type	Dual power management, built-in rechargeable lithium battery + external battery (CR123*1)
	Battery capacity display	Yes
	Operating time	≥4 hours
Environmental Parameters	Shock resistance	800g/ms
	Vibration resistance	2g,GB/T2423.10(IEC60068-2-6)
	Electromagnetic compatibility	Meets CE requirements
	Humidity	0~95%
	Operating temperature	-30℃~+55℃ (-22 °F to 131°F)
Physical Characteristics	Casing color	Black
	Interfaces	Standard 40mm white light scope adapter ring (front view mode), with standard 20mm Picatinny rail
	Protection rating	IP67
	size	Front view mode: 187.5×70×83.4mm
		Standard viewing mode: 220×70×83.4mm
	Weight (Front-facing mode)	≤515g	≤575g
Interface	Power Input	Type-C interface (for charging, data transfer, and external analog image output)
Detection Range	Person (1.8×0.5) m	1600m	2300m
	Car (2.3×2.3) m	2200m	3200m
Recognition Range	Person (1.8×0.5) m	800m	1150m
	Car (2.3×2.3) m	1100m	1600m
