TMRS5 Series Outdoor Thermal Scope Resolution 384x288 with Rangefinder Full Black Night Vision Devices for Hunting

Model Number : TMRS5

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-30 days

Packaging Details : Optional

Detector Type : Uncooled Focal Plane Vanadium Oxide

Pixels : 384x288

Focal Length : 35mm 19mm

Field of View (±5%) : 13.8°×10.4° 7.5°×5.7°

Frame Rate : 50HZ

Focus : Manual

Contact Now

TMRS5 Series Outdoor Thermal Scope Resolution 384x288 with Rangefinder Full Black Night Vision Devices for Hunting

Product Description

◆Core Detector Upgrade: 384×288 Pixels, Wide field of view: 7.5°×5.7°Upgraded to 12μm, Uncooled Focal Plane Vanadium Oxide Infrared Detector – Professional Strength Inside Out
◆1440×1080 Resolution OLED Eyepiece Display Module: Features ultra-high-definition display for finer, more detailed images.
◆50Hz High Frame Rate:Delivers a comfortable and high-quality viewing experience for moving targets, with sensitive and smooth dynamic image capture free of lag.
◆Multiple Crosshair Reticles and Multiple Sets of Custom Memory Calibration Parameters: Configurable for personalized use.

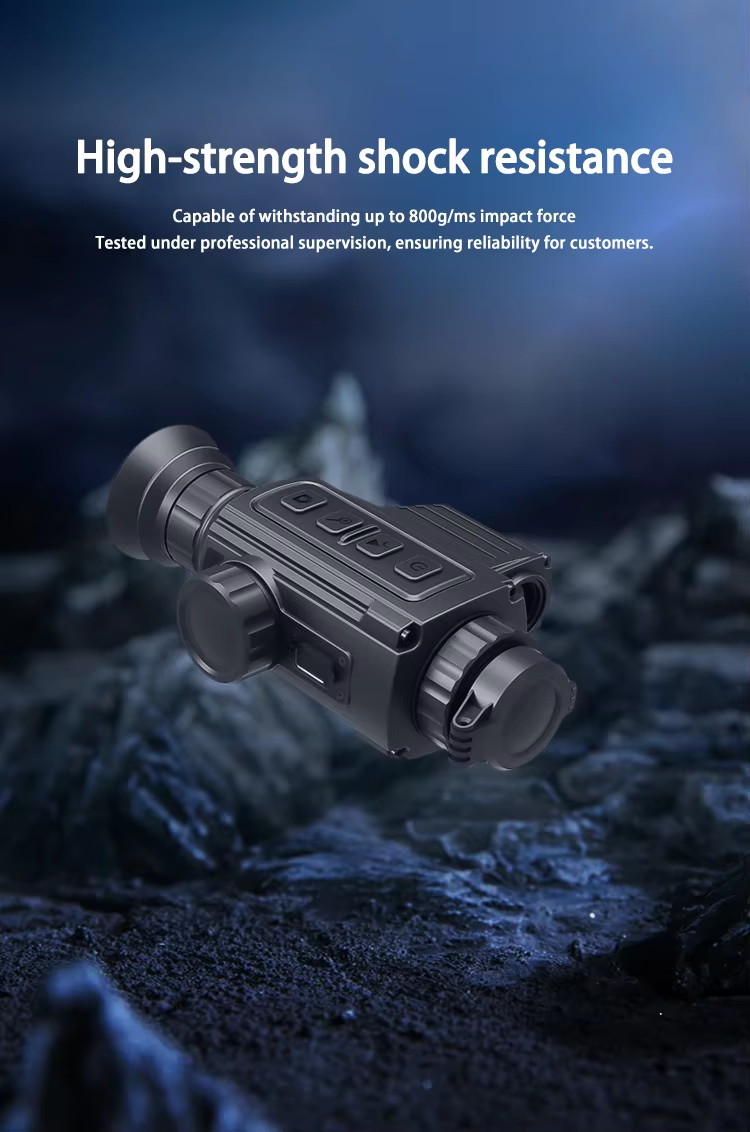

◆Shock Resistance Up to 800g/ms ,and Anti-vibration 2g, GB/T 2423.10 (IEC 60068-2-6)

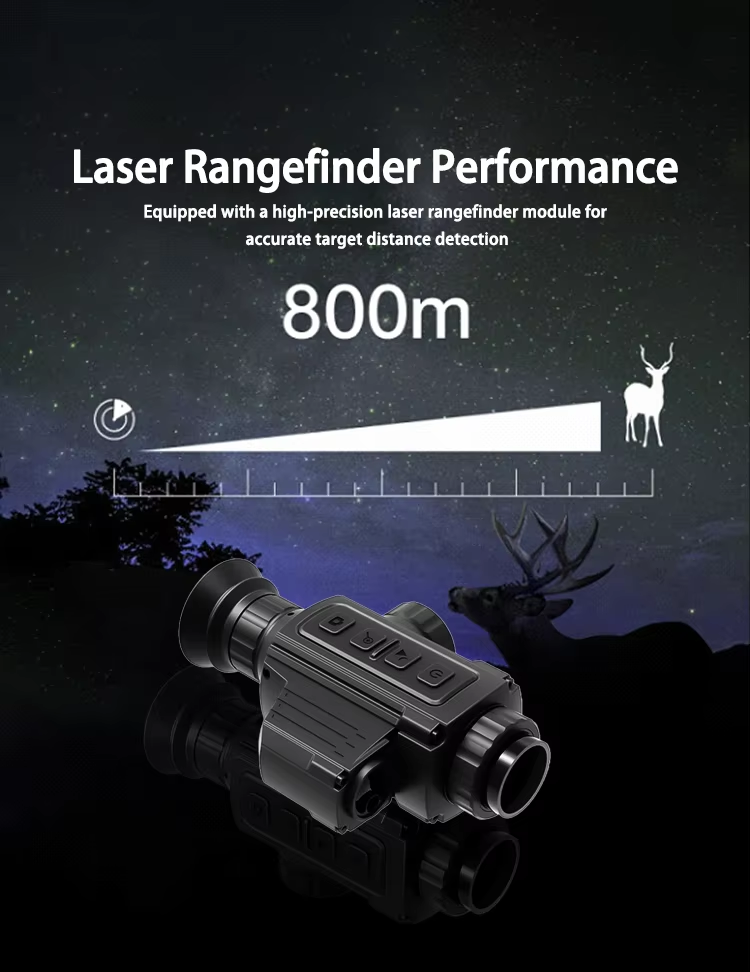

◆Accurate Laser Rangefinding:Wavelength 905 nm, Measurement Range Up to 1000 m (Maximum) and 10 m (Minimum), Accuracy: ±1 m (Optional)
◆Adopts the Latest Lison II Detail Enhancement Algorithm: Crosshair Cursor + Laser Pointer,Quickly Locate Targets and Confirm Observed Objects
Equipped with an Electronic Compass and Motion Sensor: Detects and senses direction in real time.
◆Equipped with Image WIFI Transmission, Built-in Video Recording and Photo Shooting Functions.
◆IP66 Protection Rating: Resistant to wind and rain.
◆Compact and Lightweight Design: Easy to carry with no burden.
◆Compatible with Universal Rails: Expands application scenarios.
◆Newly Added Forest Observation Mode: 4 Pseudo-Color Modes (Black Hot, White Hot, Red Hot, Pseudo-Color) – The newly added Forest Observation Mode adapts to different observation scenarios in complex environments and changing weather.
◆Picture-in-Picture (PiP), Instant Clarity: The central area is magnified 2x, allowing you to view target details without losing the field of view
◆Bad Pixel Repair Function:It detects "bad pixels" on the sensor or screen through algorithms, and compensates for or masks the bad pixels using information from surrounding normal pixels to ensure image integrity.
◆Built-in Storage: 32GB large-capacity built-in storage for capturing more wonderful moments.
◆Long battery life: A single standard 26500 battery enables continuous operation for more than 5 hours.
◆Built-in Rangefinder: Detection range up to 2000m+, Identification distance up to 1100m, enabling exploration of longer distances

TMRS5 Series Outdoor Thermal Scope Resolution 384x288 with Rangefinder Full Black Night Vision Devices for Hunting

Specification

Project Name		S242 Pro	S243 Pro	S243 Max
Detector Performance	Detector Type	Uncooled Focal Plane Vanadium Oxide
	Pixel	256×192	384×288	384×288
	Noise Equivalent Temperature Difference (NETD)	≤35mk@25℃
Image Functions	Field of View (FOV)	12.1°*9.1°(±5%)	17.6°*13.2°(±5%)	13.9°*10.4°(±5%)
	Focal Length	15mm	15mm	19mm
	Frame Rate	50HZ
	Focus	Fixed Athermalization, Focus-Free			Manual Focus
	Electronic Zoom	1.0~4.0X
	Wavelength Range	8-14μm
	Image Transmission	WiFi Real-Time Image Transmission
	Crosshair Cursor	Yes
	Built-in Photo and Video Recording	Yes
	Internal Storage	32G
	Hotspot Tracking	Yes
	Laser Pointer	Yes
Image Display	Display	Color OLED 800*600 (Eyepiece Diopter Adjustable)
	Image Polarity	Black Hot, White Hot, Red Hot, False Color Modes
	Diopter Adjustment	Adjustment via Knob
Power Supply System	Battery Type	Lithium Battery
	Battery Operating Time	≥15h	≥10h	≥10h
	Charging Type	Supports USB Charging and Can Be Powered by an External Power Bank
	External Power Supply	DC5V/2A(type-c)
Environmental Parameters	Operating Temperature	-20℃- +50℃
	Storage Temperature	-40℃- +60℃
	Protection Class (IP Rating)	IP66
	Drop Resistance	1 M
Physical Characteristics	Weight	≤330g	≤330g	≤350g
	Dimensions	≤1856060mm	≤1856060mm	≤1996060mm
Interface	Power Interface	Type-C External Charging
	Video Output	PAL
Detection Distance	Human (1.8*0.5m)	1000m	1000m	1300m
	Vehicle (2.3*2.3m)	1400m	1400m	1800m
Recognition Distance	Human (1.8*0.5m)	345m	345m	435m
	Vehicle (2.3*2.3m)	480m	480m	600m
